Zsls Construction Mining Screw Conveyor

Overview

Basic Info.

Model NO.	ZSLS
Condition	New
Volume	10-140 T/H
Delivery Distance	3-12 mm
Roating Speed	300-175 N/Min
Screw Diameter	140-365mm
Transport Package	Plastic Wrap
Specification	600-1500mm diameter
Trademark	Zoonlech
Origin	China
HS Code	8431410000
Production Capacity	5000

Product Description

Product Description

ZSLS Screw Conveyor

Detailed Photos

Product Parameters

Model	Unit	ZSLS-140	ZSLS-160	ZSLS-200	ZSLS-250	ZSLS-300	ZSLS-400
Screw diameter	Mm	140	163	187	238	290	365
Outer diameter	Mm	168*5	194*4.5	219*6	273*6	325*7	402*7
Rotating Speed	N/min	300	300	260	200	175	175
Delivery Volume	T/h	10-15	28-40	38-58	55-80	80-110	110-140
Delivery Distance	Mm	3-5	3-13	3-15	4-15	6-15	6-12
Delivery Angle	°	<60	<60	<60	<60	<55	<55
three-phase electric machine (L≤7)	Kw	Y132S-4/5.5	Y132S-4/5.5	Y132S-4/7.5	Y160S-6/11	Y180MS-4/18.5	Y180M-4/18.5
three-phase electric machine(L≥7)	Kw	Y132S-4/5.5	Y132S-4/7.5	Y160M-4/11	Y160L-615	Y180L-6/22	Y180L-6/22

Related Products

https://zoonlech.en.made-in-china.com/product-list-1.html

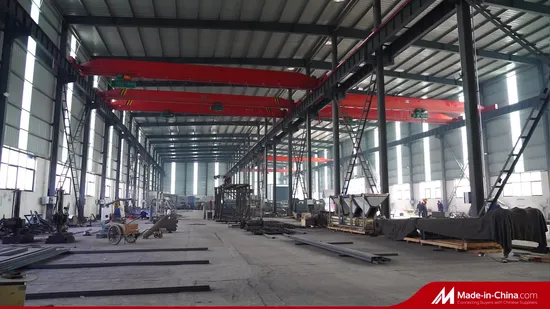

Company Profile

Henan Zoonlech Machinery Co., Ltd., and Yangzhou Zhongsheng Machinery Co., Ltd. And Puyang Zhongshengda Machinery Co., Ltd. Belong to Zhongsheng Machinery Group.
The headquarter is located in Zhengzhou Airport Area, China's first national-level airport economic comprehensive experimental zone, which is a three-dimensional comprehensive transportation hub with multiple transportation modes. At present, the company has an independent high-education research and development team, including many doctoral students and graduate students from well-known domestic universities of science and technology, and has established three independent production plants across the country. "Quality first, user practical" service commitment.
Zhongsheng Machinery was founded in 1992. It started from agricultural machinery. After 30 years of hard work, it has developed from agricultural machinery series products, construction machinery series products, and now it is mainly engineering machinery series products. It integrates mechanical equipment research and development, production, sales, A composite manufacturer integrating after-sales service.
Zhongsheng Machinery has a complete range of products. Construction machinery mainly produces excavator attachments, steel grabbers, wood grabbers, mechanical grabs, electromagnets, hydraulic shears and other products, which are widely used in metallurgy, renewable resources, mines, construction and railways. Industry; Construction machinery involves concrete mixer series, concrete mixing station series, mobile concrete construction series, etc.
Focusing on quality, practicality and efficiency, Zhongsheng Machinery is based in China and serves the world. It provides customers with diversified engineering solutions, strives to build a one-stop procurement platform, and has a full-time after-sales service team to solve customers' worries.

Our Advantages

Own factory manufacturing, quality assurance.Welcome to order.
