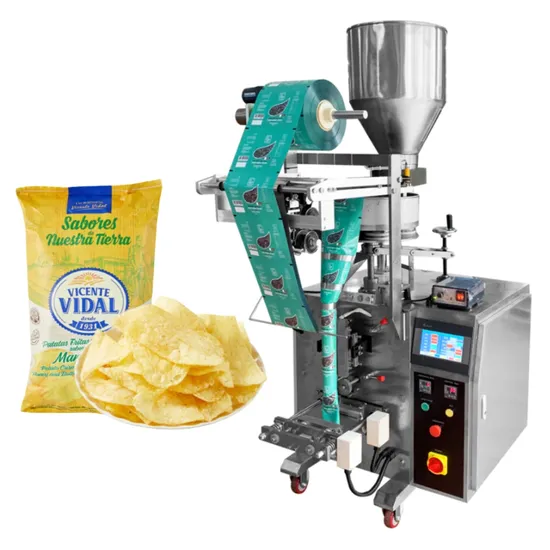

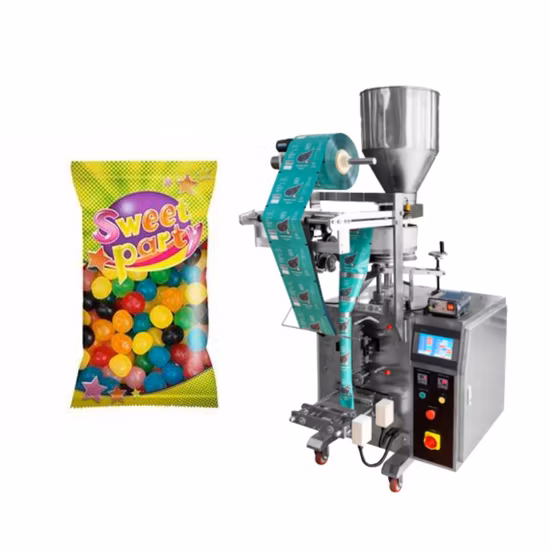

Small Jelly Beans Gummy Bear Ice Candy Pouch Filling Packing Machine

Overview

Basic Info.

Model NO.	DB-320A
Application	Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Type	Forming Filling Sealing Machine
Forming Species	Bag Moulding
Forming Function	Forming, Filling, Seal
Driven Type	Electric
Material Type	Grain
Packaging	Bag
Packaging Material	Film
Optional Device	Date Printer, Nitrogen Device, Metal Detector
Machine in Stock	Available
Auto Feeding for Chips	Available
Certificate	CE Certification
Packing Speed	10-60 Bags/Min
Bag Type	Stick Bag, Pillow, Middle Sealing, Gusseted
Transport Package	Wooden Cases
Specification	L 1100* W 755 * 1540 mm
Trademark	DOUBLE MACHINE
Origin	China
HS Code	84224000
Production Capacity	100sets/Month

Product Description

Product Description

Small jelly beans gummy bear ice candy pouch filling packing machine

Are you looking for an automatic sachet packing machine to start a new business or upgrade your current productivity?
DOUBLE MACHINE provides a fully automatic packing solution suitable according to your requirement. Multiple filling systems are available for food packing, granule packing, liquid packing, or powder packing, including volumetric, multi-head weigher, servo auger, or liquid does option.

Detailed Photos

1. Product filling systembefore we turn on the packing machine, we put the products into the hopper which is made of 304 stain steel. The product will be weighed by the different filling systems, for example, granules like rice, sugar, and tea leaves weighed by a volumetric cup or multi-head weigher.
2. Packing film transportwhen the granule vertical packaging machine is operating, a single sheet of packing film material is usually pulled off the roll by film transport belts, which are positioned to the bag forming.
3. Bag forming
From here, the film enters a forming tube which is customized based on customer bag width. It is folded around the forming tube with the two outer edges of the film overlapping each other. This is the beginning of the bag-making process.
4. Bag sealing and cutting
After the product is filled and inside the bag, the cutter who has a heater inside moves forward and cuts the bag. This is the end of the whole packing cycle time on a vertical packing machine.5. Other optional equipment
The finished bag can be discharged onto a conveyor or to other machines like a check weigher, metal detector, carton packing machine, etc.
Depending upon the packing products and customer requirements, below are some optional devices for reference.

• Various filling systems for powder, granule, liquid, snacks, coffee, etc.
• Date coding printer
• Nitrogen filling
• Role hole or euro slot hole punching
• Tear notch
• Weigh checker
• Metal detector
• Box carton packing machine
• Labeling machine

Product Parameters

Machine model	DB-320A
Packing speed	10-60 bags/min
Filling range	5-200 ml
Packing accuracy	depend on the material
Bag length	40-200 mm
Bag width	50-150 mm
Bag type	pillow bag, 3/4 side bag, stick bag, gusseted bag
Film material	Heat Sealable PE film & Laminated Film, such as PE/PET, PE/AL/PET, BOPP, LDPE, etc.
Film thickness	0.05-0.09 mm
Film max film width	320 mm
Machine dimension	L 1100* W 755 * 1540 mm
Machine voltage	220V, 50Hz/60Hz

Application of packing machine

This automatic vertical form fill seal packing machine is suitable for weighing and packing grain, stick, slice, globose, and irregular shape products such as puffed food, snacks, candy, jelly, seeds, almonds, chocolate, nuts, pistachio, pasta, coffee bean, sugar, chips, cereals, pet food, fruits, roasted grains, frozen food, vegetable, fruits, hardware, etc.

The packing machine starts with a large roll of film, fills the package with a product, then seals it into the shape of a bag. This VFFS packaging machine put a stop to human error or mistakes, inconsistent quality, increasing labor costs, and inefficiency production process.
Bag types
Suitable for different bag types packing, pouch bags, stick bags, 3-side seal bags, 4-side seal bags, irregular shape bags, pouch bags, stand-up pouch bags, etc.

Company Profile

Foshan Double Intelligent Equipment Co., Ltd, one of the leading manufacturers of packing machines since 2010, we are engineers, designers, innovators, material and software specialists, and problem solvers. Whether your company is a start-up or a well-established business, Our machine, solution, and service have always been about return on investment, long-term value, and end-to-end solutions for customers.
With 5 professional workshops, we design and manufactures VFFS packing machine, flow wrap packing machine, and premade pouch packing machine. Our portfolio also includes the best-selling botting filling machine, capping machine, and cartooning machine.
Our systems and equipment help produce a wide range of solutions for food packing, liquid packing, powder packing, coffee powder packing, hardware packing, consumer product packing, etc.
Benefiting from favorable local material resources and our high flexibility as a direct factory, we ship reliable CE-certified packaging equipment to Europe, America, the Middle East, and Southeast Asia at more competitive prices and faster schedules. We will work with you to arrive at just the right manufacturing solution. Whatever you need to succeed, DOUBLE MACHINE is there for you, to deliver it.

FAQ

1. How to find a solution suitable for my product?

Tell me about your product details: 1. What kind of product do you have 2. the size of your product.2. How easy is it to operate packing machine? The good news is that as long as your packaging system isn't hyper-customized, the equipment is pretty easy to use! Most of our equipment does not require advanced technical knowledge to operate.3. How much does the packing machine cost? There is no quick, easy answer to this question. Packaging machinery is specific to the customer, so arriving at 'standard pricing' isn't usually practical. Pricing largely depends upon your unique needs, such as the products you want to package, the speeds you would like to achieve, your sizes or the complexity of your process.4. Which packing machines are available in stock?If your needs are fairly standard and straightforward, you may be able to snag an In-Stock Machine and get it delivered in just a few weeks! CALL US to ask about our current inventory.5. What is your after-sales services?After finishing the production, we will debug the production line, take photos, videos, and send them to customers via mail or instant tools.After the commissioning, we will package the equipment by standard export package for shipment.According to the customer's request, we can arrange for our engineers to customer's factory to do the installation and training.Engineers, sales managers and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.6. What others do you offer?
DOUBLE MACHINERY are the one-stop solution provider, not only providing only one transaction packing machine, but also the turnkey solution, such as guidance about how to choose the right packing film material, what other auxiliary equipment we need, or how we maintain our machine, etc.
